Stock Abbreviation : Daze Electrode
Stock Code : 832850

China-中文

Zinc Cathodes

Service life≥12 Months

A00 Cathodes

Back

Zinc CathodesOverview of

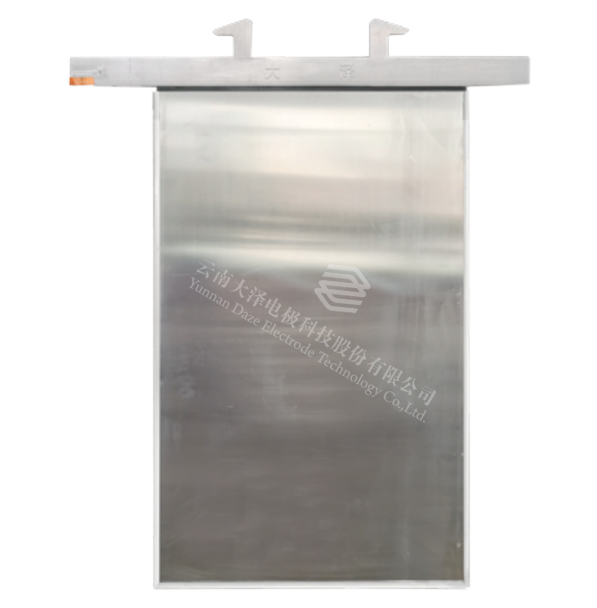

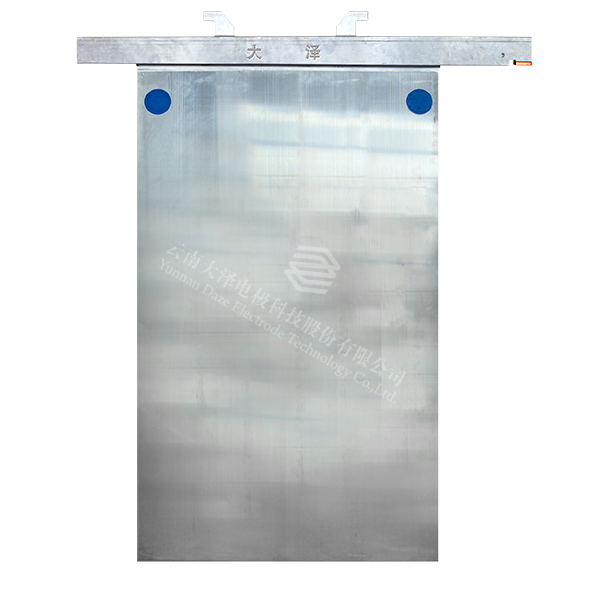

The cathode plate for zinc electrodeposition is composed of such parts as aluminum plate, aluminum alloy conducting beam or pure aluminum conducting beam, composite conducting head (conducting strip), and lifting lugs and process by a specific process to be suitable for hydrometallurgical zinc electrodeposition.

Parameter Information

Some Patented Technology Products

Three-side Injection Molding

A high-pressure injection molding process is performed at the cathode plate edges, and the insulation strips on the three sides are formed in one piece, which is not easy to fall off and has a long service life.

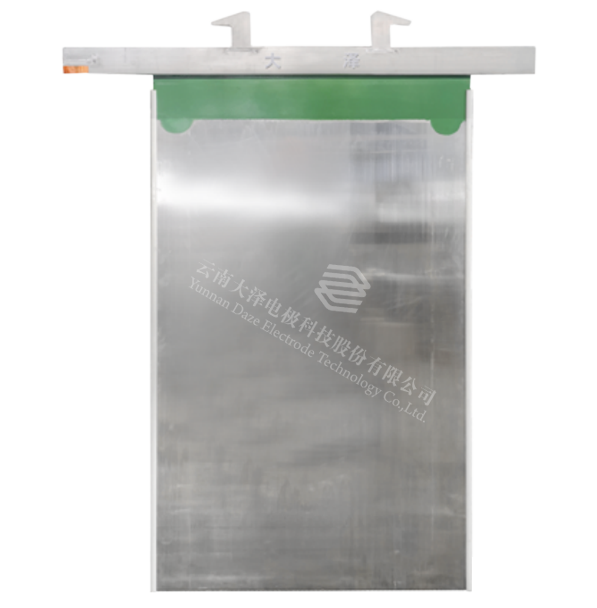

Coating

High-polymer strong plastic corrosion-resistant materials are used and a special process is applied to protect the cathode plate liquid level from corrosion. The insulation strips on the three sides are formed integrally by high-pressure injection molding process and are not easy to fall off.

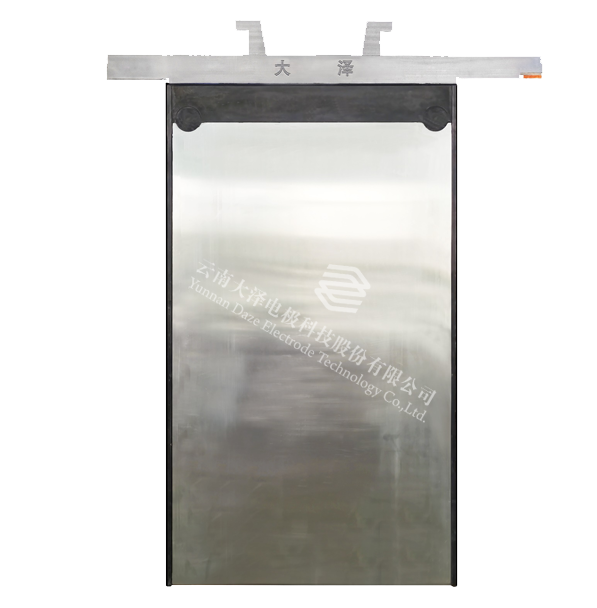

Rubber vulcanization

Modified rubber vulcanization materials and a cladding process are used to form the cathode plate edge and liquid level protection position integrally, thus forming the overall insulation protection of the plate, strong adhesion of the materials and long service life of the plate.

You may also be interested in the following products

Copper Cathodes

The cathode materials for copper electrodeposition and electrolytic refining include thin copper starting sheet (traditional method) and permanent stainless steel plate (ISA, KIDD, OT, and EPCM technical methods). The cathode used for the permanent cathode electrolysis technique is composed of 316L stainless steel plate, current conducting rod, and insulated edge. The plate for the main part of the permanent cathode is made of 316L stainless steel, and the conducting rod forms are rectangular square copper tubes, copper-clad steel and steel-clad copper respectively.

Manganese Cathodes

The cathode plate for manganese electrodeposition is formed of 304 stainless steel plate and current conducting rod by soldering.

Copper Anodes

Copper electrodeposition is the process of obtaining copper through metal deposition in copper-rich liquid by the electrodeposition method, which is the last process of producing copper by the wet method. In the leaching-extraction-electrodeposition process, water is decomposed on the anode to precipitate O2, and the cathodic process is the same as electrolytic refining, i.e. Cu²⁺ obtains electrons on the cathode and precipitates copper. Pb-based alloy anode plates with a lower corrosion rate are used.

Zinc Anodes

In recent years, Pb-Ag binary alloy anodes, Pb-Ag-Ca ternary alloy anodes, Pb-Ag-Ca-Sr quaternary alloy anodes and Pb-Ag-Ca-Sr-Re multi-element alloys have been selected and used by more and more metallurgical enterprises. Such anodes have such advantages as high strength, corrosion resistance, long service life, low cost, high conductivity, low electrical energy consumption, and high-quality zinc output.

Manganese Anodes

Calcium and strontium alloys are added to the electrodeposited manganese anode plates, thus increasing the crystallinity of lead alloy, refining the lead grains, and making the anode plates have good mechanical properties, high conductivity, high corrosion resistance and other characteristics.

Nickel Anodes

Nickel extraction by electrodeposition is performed in mixed electrolyte system of chloride and sulfuric acid. The anode used for nickel extraction by electrodeposition is required to be stable, corrosion-resistant and durable, with good electrocatalytic activity in the usage of anode, in order to reduce the overpotential and cell voltage of the anode.
